Dry Powder Magnetic Separators

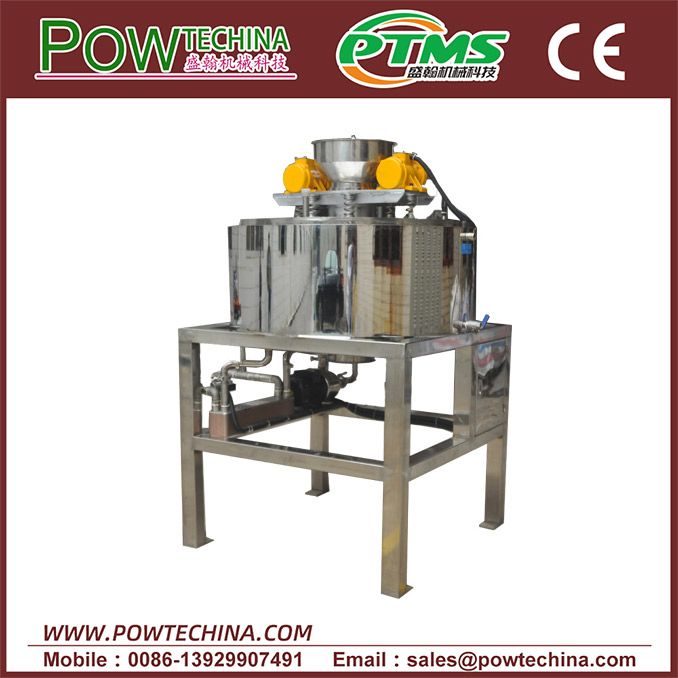

All Stainless Steel Electromagnetic Dry Powder Machine
All Stainless Steel Electromagnetic Dry Powder Machine by PTMS (Foshan Powtech). Dry electromagnetic separators for free-flowing powders such as quartz powder, feldspar powder, bentonite, lithium battery cathode and anode materials, graphite and activated carbon.
- Free 5–10 kg sample test before you order, report in 5 days
- 24-hour burn-in test on every unit before shipment
- Installation guidance and remote support for overseas buyers
Request a quote Free sample test
Applications
Specifications
Published data covers seven all-stainless-steel dry-powder models, 3K160 to 20K600: magnetic field strength 2–3.5 T, maximum coil power 3–20 kW at 380 V input, magnetic cavity diameter 160–600 mm and production 0.5–8 t (as published). Typical uses are dry powders such as quartz, feldspar and bentonite powder and lithium battery cathode and anode materials.
| Model | Magnetic field strength (T) | Input voltage (V) | Maximum output current (A) | Maximum coil power (kW) | Insulation class | Cooling method | Magnetic cavity diameter (mm) | Yield (t) | Overall dimensions (mm) | Host weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3K160 | 2 | 380 | 7 | 3 | E | Double cold water and oil | 160 | 0.5–1.5 | 700 × 700 × 1450 | 450 |
| 3K220 | 2 | 380 | 7 | 3 | E | Double cold water and oil | 220 | 1–3 | 830 × 830 × 1460 | 490 |
| 7K300 | 2.5 | 380 | 7 | 7 | E | Double cold water and oil | 300 | 1.5–4 | 1320 × 1320 × 1450 | 1020 |
| 11K220 | 3 | 380 | 7 | 11 | E | Oil cooling | 220 | 1.5–6 | 1300 × 1100 × 1850 | 1130 |
| 11K430 | 3 | 380 | 7 | 11 | E | Double cold water and oil | 430 | 2.5–6 | 1600 × 1720 × 2500 | 1210 |
| 15K220 | 3 | 380 | 7 | 15 | E | Double cold water and oil | 220 | 1.5–6 | 1300 × 1100 × 1850 | 1500 |
| 20K600 | 3.5 | 380 | 7 | 20 | E | Double cold water and oil | 600 | 1.5–8 | 1500 × 1500 × 1850 | 2000 |
Product details
The electromagnetic dry powder machine is mainly aimed at the positive pole, A new type of iron removal machine developed by negative powder material, Its magnetic system is characterized by the inclusion Angle of most magnetic poles, The absolute value of magnetic flux density in machine sorting area is relatively average, Play the role of its magnetic system, Different field strength can be designed according to the different properties of the ore, In addition, the electromagnetic dry powder machine does not need to overcome the gravity effect and the resistance of raw materials in the selection process., When nonmagnetic minerals are separated from the magnetic field, Under the action of gravity, Minerals can be well separated from the magnetic barrel, And the mechanical vibration device is added to the electromagnetic dry powder machine, It can not only improve the effect of iron removal, but also facilitate the realization of iron scrap.
