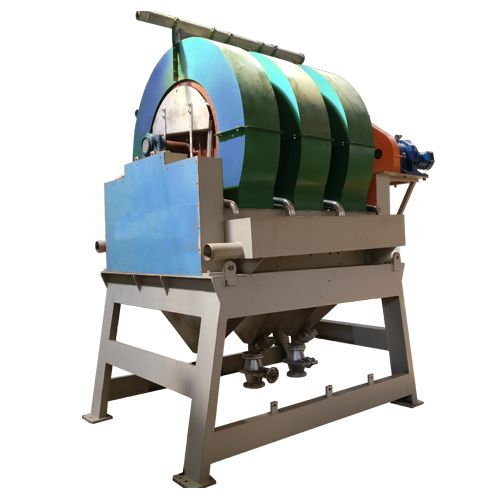

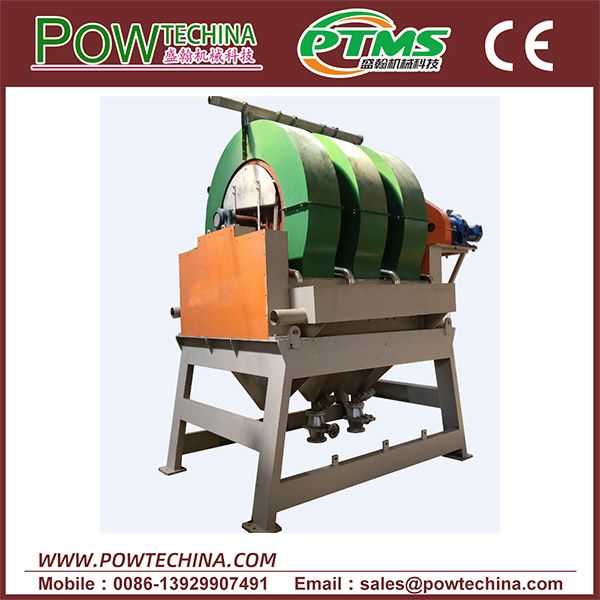

Vertical Ring High Gradient Magnetic Separator
Vertical Ring High Gradient Magnetic Separator by PTMS (Foshan Powtech). High-gradient magnetic separators for fine and weakly magnetic impurities in non-metallic minerals, plus stainless steel drawer-type units for powders.
- Free 5–10 kg sample test before you order, report in 5 days
- 24-hour burn-in test on every unit before shipment
- Installation guidance and remote support for overseas buyers
Request a quote Free sample test
Applications
Specifications
Published data covers eight vertical ring high gradient models, WJD500 to WJD2000, with loop outer diameter 500–2000, rated background magnetic field 1, rated excitation power 10–40 and pulp passing capacity from 0.25–0.5 up to 100–200; the original data sheet does not state units for these figures. Used for fine and weakly magnetic impurities in non-metallic minerals.
| Model | Loop outer diameter | Ore feeding particles | Ore concentration | Pulp passing capacity | Dry ore treatment | Rated background magnetic field | Rated excitation current | Rated excitation voltage | Rated excitation power | Ring motor power | Pulsating motor power |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WJD500 | 500 | -1.02 | 10–40 | 0.25–0.5 | 0.03–0.125 | 1 | 1200 | 8.3 | 10 | 0.18 | 0.37 |
| WJD750I | 750 | -1 | 10–40 | 0.5–1 | 0.03–0.25 | 1 | 1100 | 12 | 13 | 0.55 | 0.75 |
| WJD750II | 750 | -1 | 10–40 | 5–10 | 2–4 | 1 | 850 | 13 | 11 | 0.75 | 1.5 |
| WJD1000 | 1000 | -1.2 | 10–40 | 12.5–20 | 4–7 | 1 | 650 | 26.5 | 17 | 1.1 | 2.2 |
| WJD1250 | 1250 | -1.2 | 10–40 | 20–50 | 10–18 | 1 | 850 | 23 | 19 | 1.5 | 2.2 |
| WJD1500 | 1500 | -1.2 | 10–40 | 20–50 | 20–30 | 1 | 950 | 29 | 27 | 3 | 4 |
| WJD1750 | 1750 | -1.2 | 10–40 | 75–150 | 30–50 | 1 | 1200 | 31 | 37 | 5 | 4 |
| WJD2000 | 2000 | -1.2 | 10–40 | 100–200 | 50–80 | 1 | 1200 | 35 | 40 | 5.5 | 7.5 |
Units for Loop outer diameter, Ore feeding particles, Ore concentration, Pulp passing capacity, Dry ore treatment, Rated background magnetic field, Rated excitation current, Rated excitation voltage, Rated excitation power, Ring motor power, Pulsating motor power are not stated in the original PTMS data sheet; contact us to confirm.
Product details
Product introduction
The permanent magnetic vertical ring high gradient magnetic separator is equipped with a vertical rotating rotating and recoiling concentrate, and is equipped with high frequency vibration mechanism. It fundamentally solves the worldwide technical problem of blocking the magnetic medium of flat ring strong magnetic magnetic separator and flat ring high gradient magnetic separator. It has large enrichment ratio and strong adaptability to the fluctuation of granularity, concentration and grade of ore supply. It has the advantages of reliable operation, convenient maintenance and so on. This machine has the advantages of high concentrate grade and high recovery rate.
Scope of application: It is suitable for iron ore purification and weak magnetic mineral processing in non-metallic minerals.
