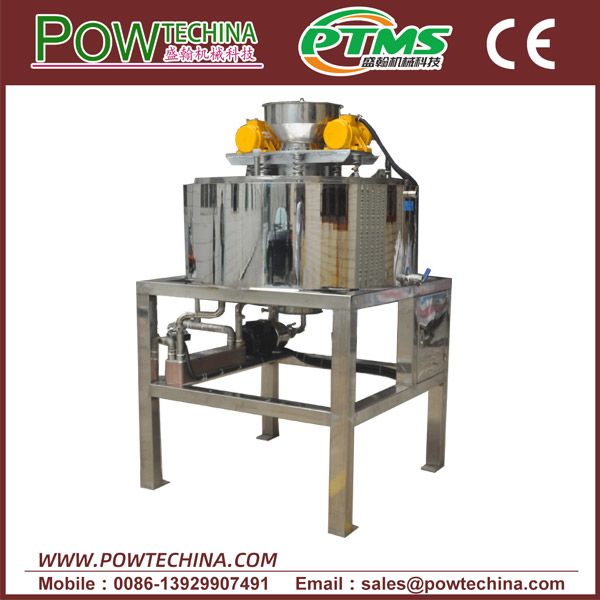

Activated Carbon Magnetic Separator
Activated Carbon Magnetic Separator by PTMS (Foshan Powtech). Iron removal for lithium battery materials: lithium cobalt oxide, lithium manganate, lithium iron phosphate, graphite and carbon materials.
- Free 5–10 kg sample test before you order, report in 5 days
- 24-hour burn-in test on every unit before shipment
- Installation guidance and remote support for overseas buyers
Request a quote Free sample test
Applications
Specifications
Published data covers seven dry electromagnetic models, 3K160 to 20K600: magnetic field strength 2–3.5 T, maximum coil power 3–20 kW at 380 V input, cold water and oil cooling, magnetic cavity diameter 160–600 mm and yield 0.5–8 t (as published). Used for iron removal from activated carbon, graphite and other lithium battery carbon materials.
| Model | Magnetic field strength (T) | Input voltage (V) | Maximum output current (A) | Maximum coil power (kW) | Insulation class | Cooling method | Magnetic cavity diameter (mm) | Yield (t) | Overall dimensions (mm) | Host weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3K160 | 2 | 380 | 7 | 3 | E | Cold water & oil | 160 | 0.5–1.5 | 700 × 700 × 1450 | 450 |
| 3K220 | 2 | 380 | 7 | 3 | E | Cold water & oil | 220 | 1–3 | 830 × 830 × 1460 | 490 |
| 7K300 | 2.5 | 380 | 7 | 7 | E | Cold water & oil | 300 | 1.5–4 | 1320 × 1320 × 1450 | 1020 |
| 11K220 | 3 | 380 | 7 | 11 | E | Cold water & oil | 220 | 1.5–6 | 1300 × 1100 × 1850 | 1130 |
| 11K430 | 3 | 380 | 7 | 11 | E | Cold water & oil | 430 | 2.5–6 | 1600 × 1720 × 2500 | 1210 |
| 15K220 | 3 | 380 | 7 | 15 | E | Cold water & oil | 220 | 1.5–6 | 1300 × 1100 × 1850 | 1500 |
| 20K600 | 3.5 | 380 | 7 | 20 | E | Cold water & oil | 600 | 1.5–8 | 1500 × 1500 × 1850 | 2000 |
Product details
Product introduction
The electromagnetic dry powder machine belongs to the upper ore feeder and the single cylinder dry type strong magnetic separator. Its magnetic system is characterized by large angle of wrapping and multi pole, and the absolute value of the magnetic field density of the machine selection area is more average, and its magnetic separation function is played. Different magnetic field strength can be designed according to the different properties of the ore.
Operation process
When the non magnetic mineral is separated from the magnetic field, the mineral is well separated from the magnetic cylinder under the action of gravity; and some type of machine increases the vibration device of the whole machine, which not only improves the effect of iron removal, but also facilitates the iron abandonment. The powder is fed from the feeder, and the dry powder machine is magnetized, and a vibrator is opened to stop the feed when the feed is given, disconnect the excitation device, and open another vibrator (keep two vibrators vibrate at the same time), and dial the baffle in the hopper to the magnetic material that is adsorbed in the magnetic medium. With the help of the vibration force, it will vibrate and discharge.
Scope of application
Electromagnetic dry powder machine is especially suitable for fine particle selection of mineral particles, such as ceramic powder, flour, quartz sand, activated carbon, graphite, negative electrode and so on. It is suitable for the magnetic separation demand of raw materials that are not used in all walks of life.
