Electromagnetic Separators
Electromagnetic Dry Powder Machine
Electromagnetic Dry Powder Machine by PTMS (Foshan Powtech). Factory electromagnetic iron removers for slurry and powder lines: water-cooled, oil-cooled and full stainless steel designs with high-gradient matrices and automatic iron discharge.
- Free 5–10 kg sample test before you order, report in 5 days
- 24-hour burn-in test on every unit before shipment
- Installation guidance and remote support for overseas buyers
Specifications
Published figures for the Electromagnetic Dry Powder Machine are a magnetic field strength of 18000–30000 Gauss (stated in the product description) and a capacity of 0–5 t/h; power, voltage, cooling and dimensions are confirmed for your application. Factory electromagnetic iron removers for slurry and powder lines: water-cooled, oil-cooled and full stainless steel designs with high-gradient matrices and automatic iron discharge.
| Model | Magnetic field strength (Gauss) | Capacity / throughput | Coil or motor power | Input voltage | Cooling method | Dimensions & weight |
|---|---|---|---|---|---|---|
| Electromagnetic Dry Powder Machine | 18000–30000 | 0–5 t/h | Contact us for specs | Contact us for specs | Contact us for specs | Contact us for specs |
Other specifications for this item are not yet published. Contact us for specs. We configure each machine for your material after a free sample test.
Product details

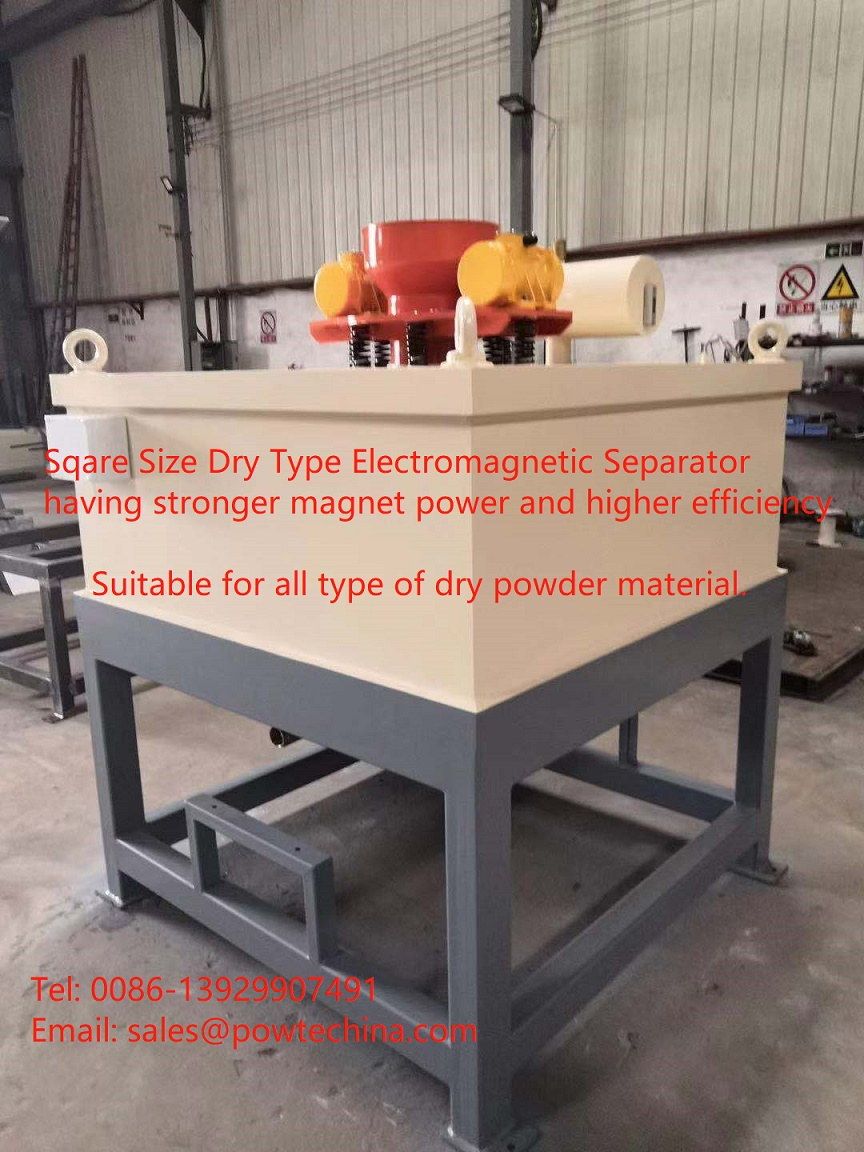

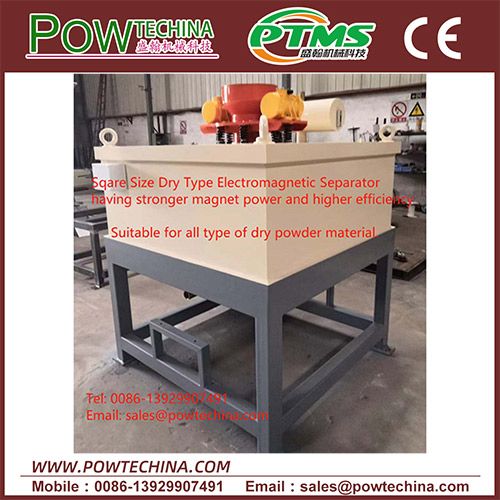

PTMS Electromagnetic Separator for Dry powder
With the continuous improvement of the requirements for powder materials in the material field at home and abroad, the iron removal and purification treatment of powder materials has become an urgent problem to be solved in these industries. Because of the particularity of powder materials, the iron removal effect of many iron removal equipment has been bad, and the cleaning trouble can not meet the requirements of enterprises. Our company after years of research and practice, combined with domestic and foreign industry needs, developed PTMS Magnetic Separator Series for dry powder, this is automatic electromagnetic separator to remove iron, its magnetic field strength up to 18000-30000GS, large suction, iron removal ability is strong, not only the powder processing mixed with the medium iron basic removal, And the general equipment is difficult to remove the iron oxide (Fe2O3) in the raw ore can also be out of most, iron removal effect is excellent. This machine is convenient to clean iron, it only takes 10 seconds to complete a clean iron. This machine can be used single, can also be used in series or parallel, in order to further improve the effect of iron removal, improve the purpose of processing capacity, it is the ideal equipment for fine powder iron removal industry. This is the great feature of PTMS Magnetic Separator Series.
Performance characteristics
- Novel design, the magnetic field strength in the working cavity is 18000-30000GS, and the iron removal effect is good.
- Iron cleaning is convenient. It only takes about 10 seconds to complete a iron cleaning.
- using forced oil circulating water cooling, cooling effect is ideal.
- The whole machine is in vibration state during the working process, which effectively prevents the blocking material.
- with real-time temperature monitoring and vibration state, effectively prevent blocking material.
- automatic PLC program control, automatically complete the excitation, feeding, iron discharge and other all the action, without manual operation, reduce enterprise operating costs, effectively avoid the human factors that affect the effect of iron removal.
Operation process of PTMS electromagnetic Separator for dry powder machine
- Feed the powder from the hopper, and make the dry powder machine in the magnetized state,
Start a vibrator
- When the feeding reaches a certain level, stop feeding and disconnect the exciting device
- and start another vibrator (keep the two vibrators vibrating at the same time)
- And the baffle in the lower hopper is pulled to the iron discharge port, so that the magnetic material adsorbed in the magnetic medium can be vibrated down and discharged with the help of vibration force
Technical characteristics
Magnetic circuit is designed by computer simulation, and the magnetic field distribution is scientific and reasonable.
- All the coils are wrapped with iron armor, which improves the utilization rate of magnetic energy, increases the magnetic field intensity of the selection area by more than 8%, and the background field intensity reaches more than 0.6t.
- The enclosure of the excitation coil adopts a fully sealed structure, which has the characteristics of moistureproof, dustproof and corrosion prevention, and can work in harsh environment.
- Oil-water compound cooling mode, excitation coil heat dissipation fast, low temperature rise, magnetic field thermal attenuation is small.
- Special materials with different structure of magnetic media, magnetic field gradient is large, iron removal effect is good.
Adopt vibration mode to carry out material iron removal process and iron discharge process, iron removal clean.
- Material retaining structure is set in the material box to solve the leakage phenomenon around the turning plate and completely separate iron powder and basic materials.
