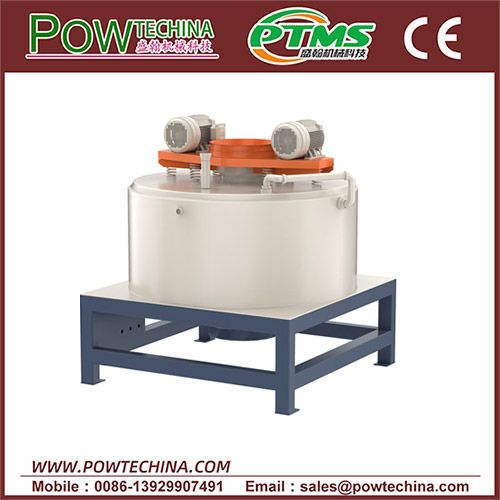

Electromagnetic Dry Separator
Electromagnetic Dry Separator by PTMS (Foshan Powtech). Factory electromagnetic iron removers for slurry and powder lines: water-cooled, oil-cooled and full stainless steel designs with high-gradient matrices and automatic iron discharge.
- Free 5–10 kg sample test before you order, report in 5 days
- 24-hour burn-in test on every unit before shipment
- Installation guidance and remote support for overseas buyers
Request a quote Free sample test
Applications
Specifications
Published data covers seven electromagnetic dry separator models, 3K160 to 20K600: magnetic separation intensity 20,000–35,000 Gauss, maximum coil power 3–20 kW at 380 V input, magnetic cavity diameter 160–600 mm and production 0.5–8 t (as published). Used for iron removal from dry powders in mineral, ceramic and battery material lines.
| Model | Magnetic field strength (Gauss) | Input voltage (V) | Maximum output current (A) | Maximum coil power (kW) | Insulation class | Cooling method | Magnetic cavity diameter (mm) | Yield (t) | Overall dimensions (mm) | Host weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3K160 | 20000 | 380 | 7 | 3 | E | Double cold water and oil | 160 | 0.5–1.5 | 700 × 700 × 1450 | 450 |
| 3K220 | 20000 | 380 | 7 | 3 | E | Double cold water and oil | 220 | 1–3 | 830 × 830 × 1460 | 490 |
| 7K300 | 25000 | 380 | 7 | 7 | E | Double cold water and oil | 300 | 1.5–4 | 1320 × 1320 × 1450 | 1020 |
| 11K220 | 30000 | 380 | 7 | 11 | E | Oil cooling | 220 | 1.5–6 | 1300 × 1100 × 1850 | 1130 |
| 11K430 | 30000 | 380 | 7 | 11 | E | Double cold water and oil | 430 | 2.5–6 | 1600 × 1720 × 2500 | 1210 |
| 15K220 | 30000 | 380 | 7 | 15 | E | Double cold water and oil | 220 | 1.5–6 | 1300 × 1100 × 1850 | 1500 |
| 20K600 | 35000 | 380 | 7 | 20 | E | Double cold water and oil | 600 | 1.5–8 | 1500 × 1500 × 1850 | 2000 |
Product details
Product introduction
Electromagnetic powder drier, It belongs to the upper feed,Single drum dry magnetic separator. Its magnetic system is characterized by large inclusion Angle, Many poles, The absolute value of track density in the machine selection area is more average, It plays the role of magnetic separation, Different magnetic field strength can be designed according to different mineral properties.
Operation process
When a nonmagnetic mineral is released from the magnetic field, The mineral is well separated from the magnetic cylinder by gravity; In addition, some models have added vibration devices of the whole machine, It can not only improve the effect of iron removal, And it makes it easier to get rid of iron. Feed the powder into the hopper, At the same time, the dry powder machine is magnetized, Start a vibrator and stop feeding when feeding is done, Disconnect the exciter, And start another vibrator (Keep both vibrators vibrating at the same time)
The baffle in the hopper is moved to the place of iron discharge so that the magnetic materials adsorbed in the magnetic medium can vibrate down and out by vibration force.
Scope of application
Electromagnetic dry powder machine is especially suitable for selecting fine mineral particles, Like ceramic powder, flour, Quartz sand, Activated carbon, graphite, Anode materials, It is suitable for the magnetic separation of raw materia
