Electromagnetic Dry Powder Magnetic Separator Series
Electromagnetic Dry Powder Magnetic Separator Series by PTMS (Foshan Powtech). Factory electromagnetic iron removers for slurry and powder lines: water-cooled, oil-cooled and full stainless steel designs with high-gradient matrices and automatic iron discharge.
- Free 5–10 kg sample test before you order, report in 5 days
- 24-hour burn-in test on every unit before shipment
- Installation guidance and remote support for overseas buyers
Request a quote Free sample test
Applications
Specifications
Detailed technical parameters for the Electromagnetic Dry Powder Magnetic Separator Series were not published on the original PTMS website; contact us for the current datasheet. Factory electromagnetic iron removers for slurry and powder lines: water-cooled, oil-cooled and full stainless steel designs with high-gradient matrices and automatic iron discharge.
| Parameter | Value |
|---|---|
| Magnetic field strength | Contact us for specs |
| Capacity / throughput | Contact us for specs |
| Coil or motor power | Contact us for specs |
| Input voltage | Contact us for specs |
| Cooling method | Contact us for specs |
| Dimensions & weight | Contact us for specs |
Specifications for this item are not yet published. Contact us for specs. We configure each machine for your material after a free sample test.
Product details

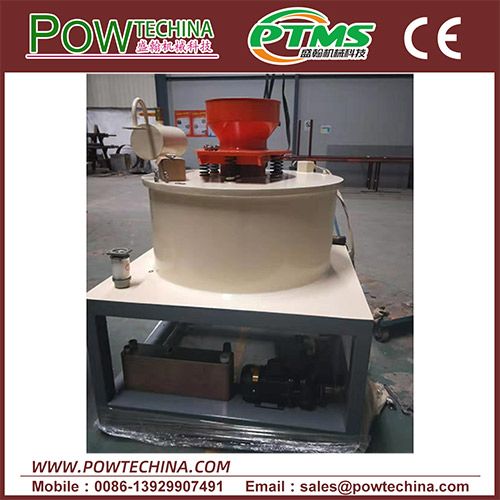

PTMS Magnetic Separator Series Product Features
The PTMS Series electromagnetic dry powder magnetic separator is a sort of equipment that is mainly developed for dry powder. Its magnetic features are the large angle of contact and multi-magnetic poles, while the absolute value of magnetic flux density of the separator sorting area is relatively average, which may play its sorting role of the magnetic system. The variable magnetic field intensity may be designed as per the different ore properties. In addition, during the sorting process, it is not required for the electromagnetic dry powder magnetic separator to overcome the gravity action and resistance of raw materials. When the non-magnetic ores are separated from the magnetic field, under the action of gravity, the ores may be properly separated from the magnetic medium. Besides, the electromagnetic dry powder magnetic separator is added with the adjustable mechanical vibration device, which not only enhances the iron removal effect, but also conveniently achieves the iron abandonment.
Operation process
It is required to feed the powder materials from the feeding hopper, make the electromagnetic dry powder magnetic separator under the magnetization status, and open one vibrator. When the materials are fed to a certain level, it is required to stop feeding the materials, disconnect the excitation device, and open the other vibrator (two vibrators will vibrate simultaneously). Meanwhile, it is required to shift the baffle in the discharge hopper to the iron dumping opening, so as to vibrate down and dump out the magnetic substances stuck to the magnetic medium by virtue of the vibration force.
Scope of application
The electromagnetic dry powder magnetic separator is especially applied to sort the fine-graded ore particles, such as the reverse magnetic separation iron removal conducted for the magnetic fine-particle black metal hematite, martite, limonite, siderite, chromite, manganese ore, and etc., fine fraction nonferrous metal wolframite and the fine fraction rare metal monazite, and fine fraction non-metallic ore feldspar, quartz, Kaolin and other ores. The electromagnetic dry powder magnetic separator is especially suitable for the mines located in the arid areas.
